Protection Level：Ip68
Rated Voltage：1000V/1500V
Cable Specifications： 4mm²/12Awg
Flammability Class： Ul94-V0
| PDF Export | |

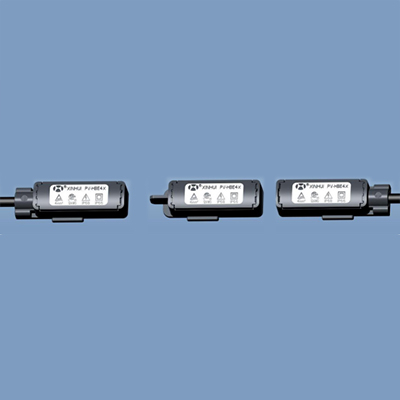

PV-HBD4XPV
XINHUI
Economic Type of Fire-proof Tin Welding
Applied to the installation of the vertical Confluence straps of the double sided photovoltaic component and the installation of the transverse Confluence straps of the single face photovoltaic component.
Authentication
Outline installation dimension chart
Technical parameters
Rated Voltage | 1000V / 1500V |
Rated Current | 18A / 20A |
Rated Reverse Current | 25A |
Antistatic | ＞30KV |
Cable Specifications | 4mm² / 12AWG |
Pollution Degree | II |
Temperature Range | -40℃~+85℃ |
Protection Level | IP68 |
Flame Retardant Grade | 5VB |
Diode Numbers | 3 |
Electrical Connection | Soldering / Resistance Welding / Riveting |
Width Of Tinning Ribbons | ≤8mm |
Irrigation Volume | 25ml |
Heat Escape Of The Bypass Diode Conforms To Iec62979 (Isc≤11A) | |
Application of optimization
Double sided photovoltaic module/Single sided photovoltaic module/Shaded area is difficult to control the regional power station/Distributed photovoltaic power plant.
Economic Type of Fire-proof Tin Welding
Applied to the installation of the vertical Confluence straps of the double sided photovoltaic component and the installation of the transverse Confluence straps of the single face photovoltaic component.
Authentication
Outline installation dimension chart
Technical parameters
Rated Voltage | 1000V / 1500V |
Rated Current | 18A / 20A |
Rated Reverse Current | 25A |
Antistatic | ＞30KV |
Cable Specifications | 4mm² / 12AWG |
Pollution Degree | II |
Temperature Range | -40℃~+85℃ |
Protection Level | IP68 |
Flame Retardant Grade | 5VB |
Diode Numbers | 3 |
Electrical Connection | Soldering / Resistance Welding / Riveting |
Width Of Tinning Ribbons | ≤8mm |
Irrigation Volume | 25ml |
Heat Escape Of The Bypass Diode Conforms To Iec62979 (Isc≤11A) | |
Application of optimization
Double sided photovoltaic module/Single sided photovoltaic module/Shaded area is difficult to control the regional power station/Distributed photovoltaic power plant.
