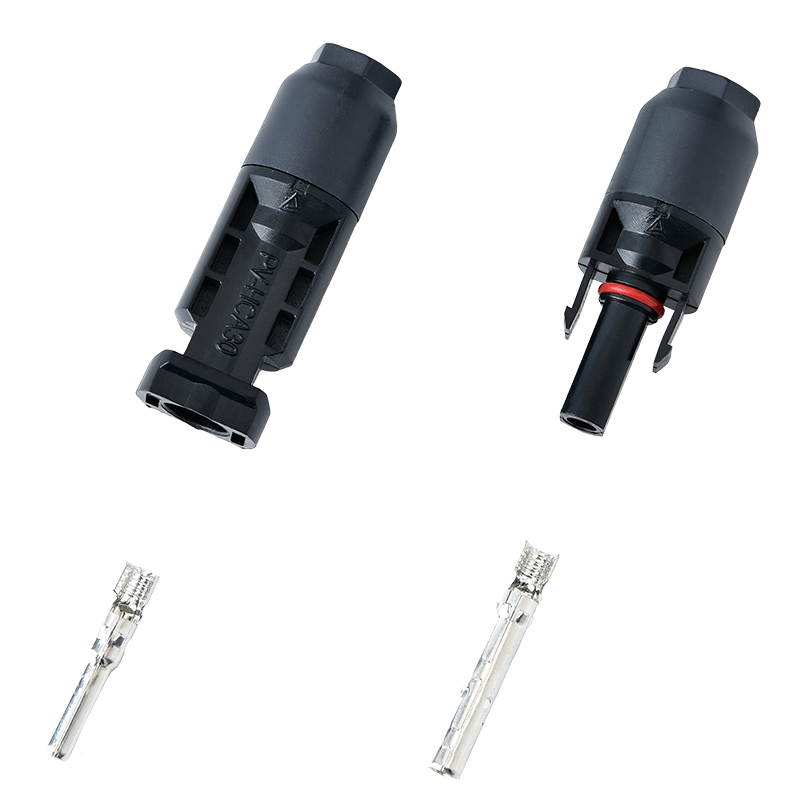

PV-HCA30
XINHUI
13 piece contact design of imported materials, low resistance, elastic Lasting, super insulation design, in line with the most stringent new Standard IEC62852:2014
Authentication
Outline installation dimension chart
Technical parameters
| Rated voltage | 1000V |
| Rated current | 35A |
| Cable specifications | 2.5mm²~6.0mm² / 14AWG~10AWG |
| Contact Resistance | <0.4mΩ |
| Temperature range | -40℃~+85℃ |
| Protection level | IP68 |
| Application class | Class A |
| Pollution degree | II |
| Electrical connection | Riveting |
13 piece contact design of imported materials, low resistance, elastic Lasting, super insulation design, in line with the most stringent new Standard IEC62852:2014
Authentication
Outline installation dimension chart
Technical parameters
| Rated voltage | 1000V |
| Rated current | 35A |
| Cable specifications | 2.5mm²~6.0mm² / 14AWG~10AWG |
| Contact Resistance | <0.4mΩ |
| Temperature range | -40℃~+85℃ |
| Protection level | IP68 |
| Application class | Class A |
| Pollution degree | II |
| Electrical connection | Riveting |
